Our simulator supports transceiver model based on IEEE 802.11n/ac standard and provide simulation analysis.

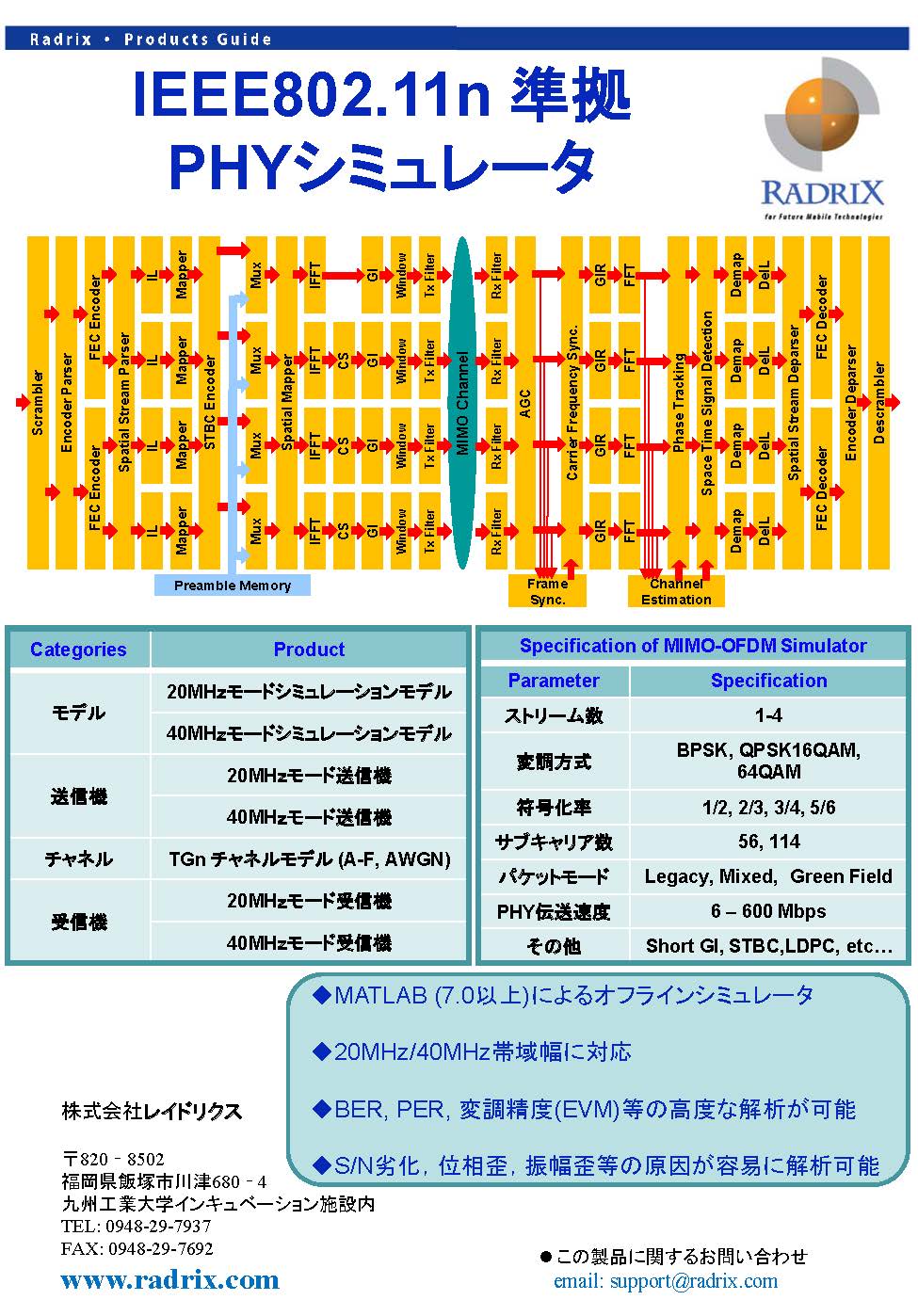

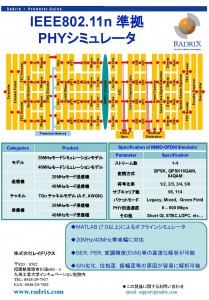

IEEE 802.11n PHY simulator
●Matlab (7.0 or more) offline simulator
●Based on the Wireless LAN IEEE 802.11n standard.
●Supports 20 MHz/ 40 MHz bandwidth
●Enable advanced analysis, e.g. BER, PER, modulation accuracy (EVM)
●The source of S/N degradation, phase distortion, and amplitude distortion can be easily analyzed.

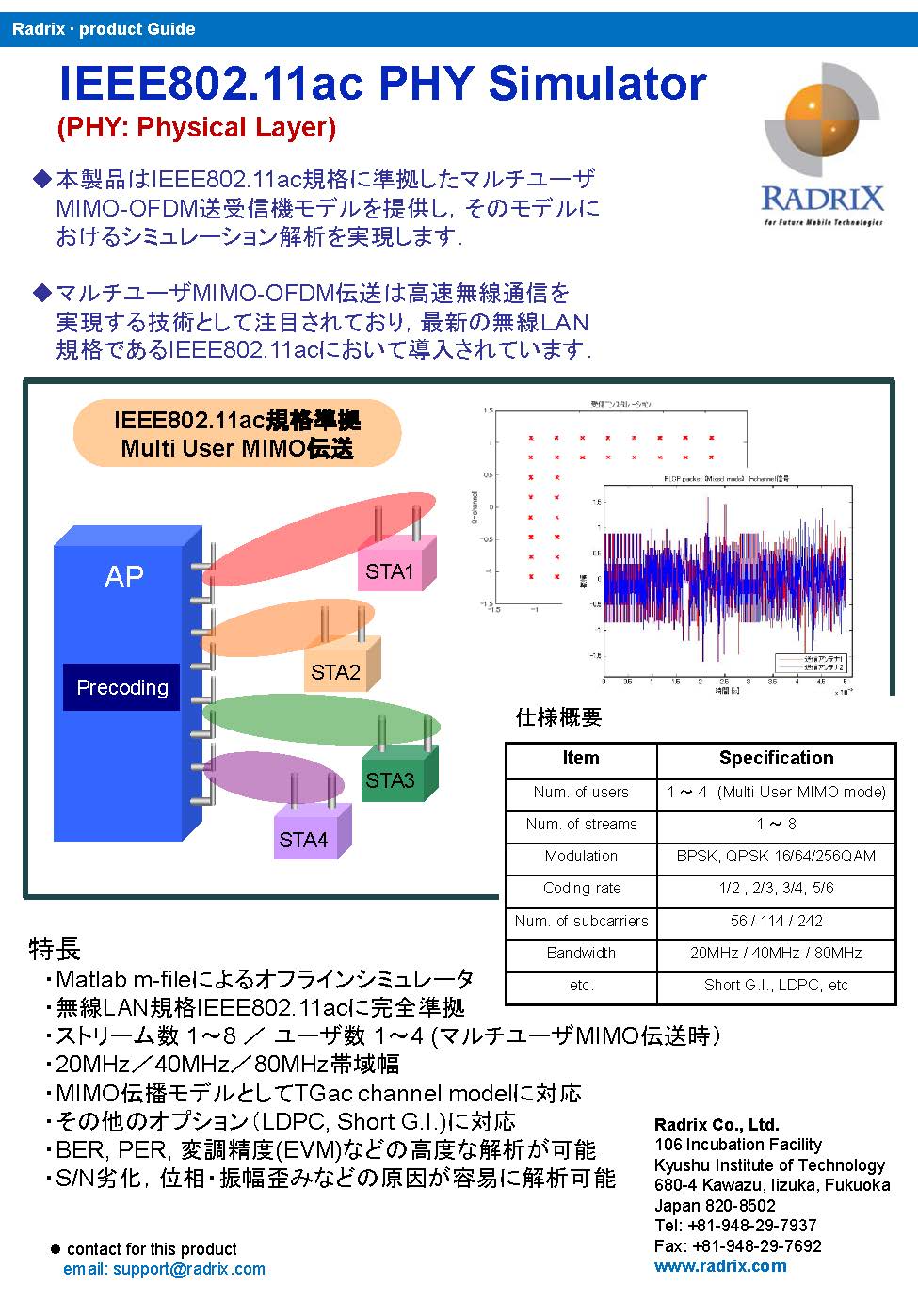

IEEE802.11ac PHY simulator
●Matlab m-file offline simulator
●Fully compliant with the wireless LAN standard IEEE 802.11ac (The multi-user MIMO transmission)
●Number of stream 1～8 ／ Number of user 1～4 (MU-MIMO）
●Supports 20 MHz/ 40 MHz/ 80 MHz bandwidth
●Supports TGac channel model as MIMO propagation model
●Corresponding to other options (LDPC, short GI)
●Enable advanced analysis, e.g. BER, PER, modulation accuracy (EVM)
●The source of S/N degradation, phase distortion, and amplitude distortion can be easily analyzed.
